433 MHz DC-Motor-Vorwärts- und Rückwärts-Controller

433mhz DC 3.6V 6V 12V 24V 1CH Relay Wireless RF Remote Control Switch Module

Technical Data Of Receiver Module:

• Input Power: DC 3.6~24V

• Max current: 3 A

• RF Frequency: 433Mhz

• Working temperature: -30~+80

• RF working mode: Super heterodyne

• Receive sensitivity: >97dbm

• Transmitting distance: more than 50 m ( open space)

• Remote storage:10pcs

• Support remote type: Learning code 1527code, Fixed code (Rolling code can be design)

• Working mode: Momentary, Toggle, Latching mode

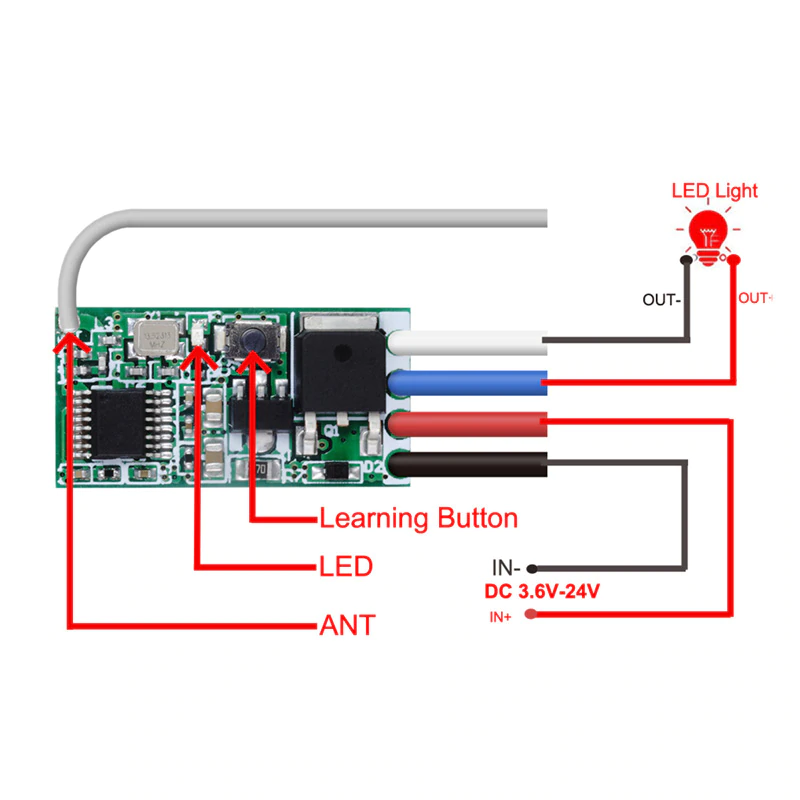

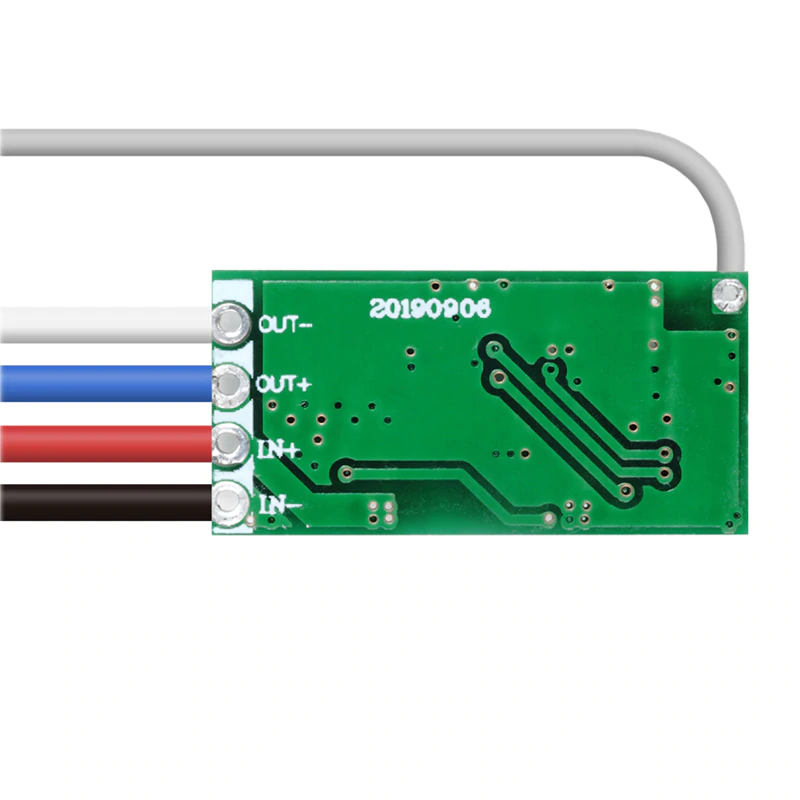

• Wiring type: Fixed terminal

Dimension of PCB: 22.5 x 11 (mm)

Operating mode:

You can match the Transmitter with the Relay Receiver Module in 3 modes.

Momentary Mode:

• Press and hold one button, relay will turn on;

• Release the button, this relay will turn off.

Toggle Mode:

• Press button "A", relay will turn on;

• Press button "A" again, this relay will turn off.

Latched mode:

• Press button "A", relay will turn on;

• Press button "B", this relay will turn off.

Delete the existing data about operating modes:

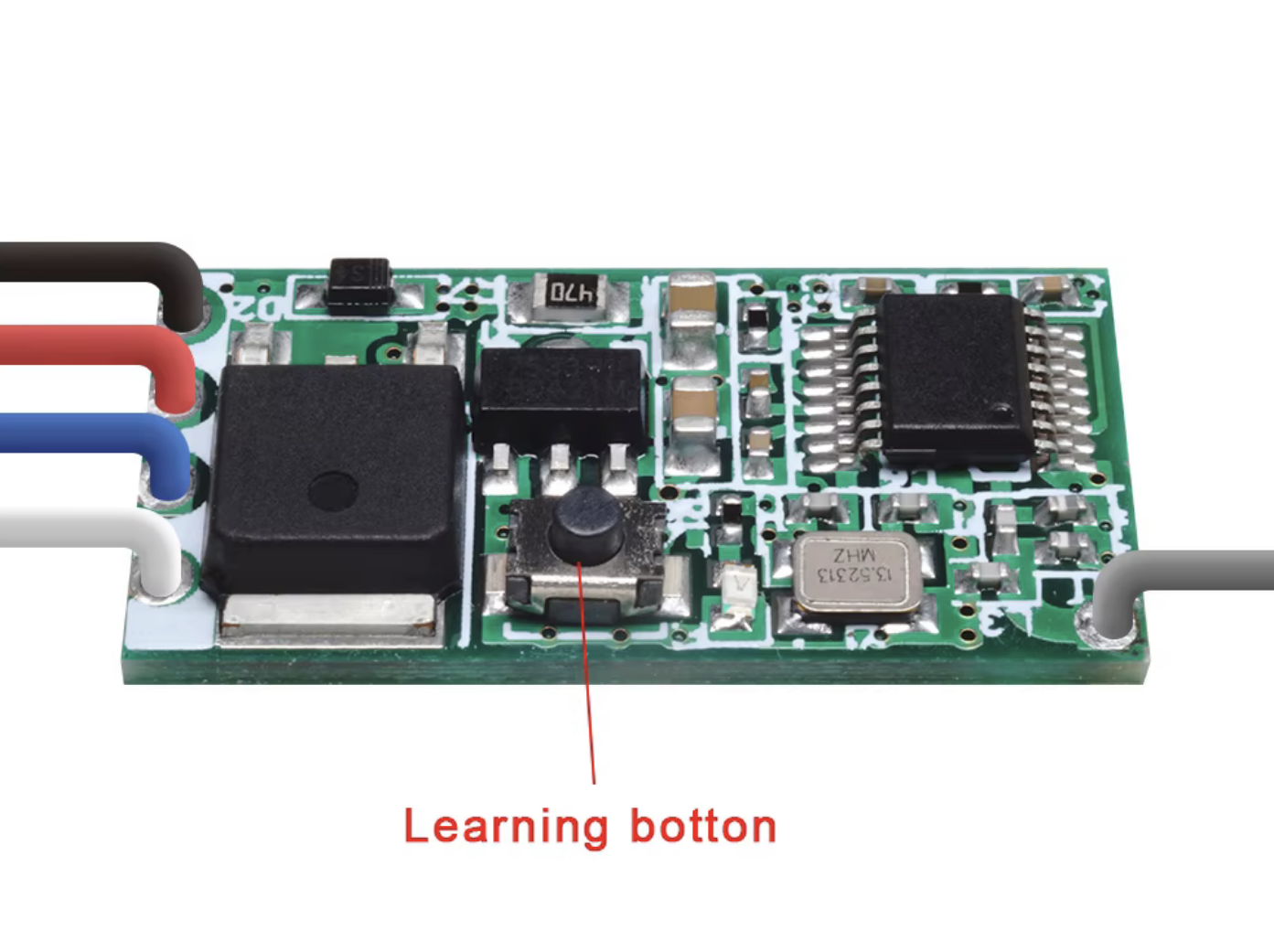

Press the learning button (on the Receiver) 8 times. The existing data will be deleted.
