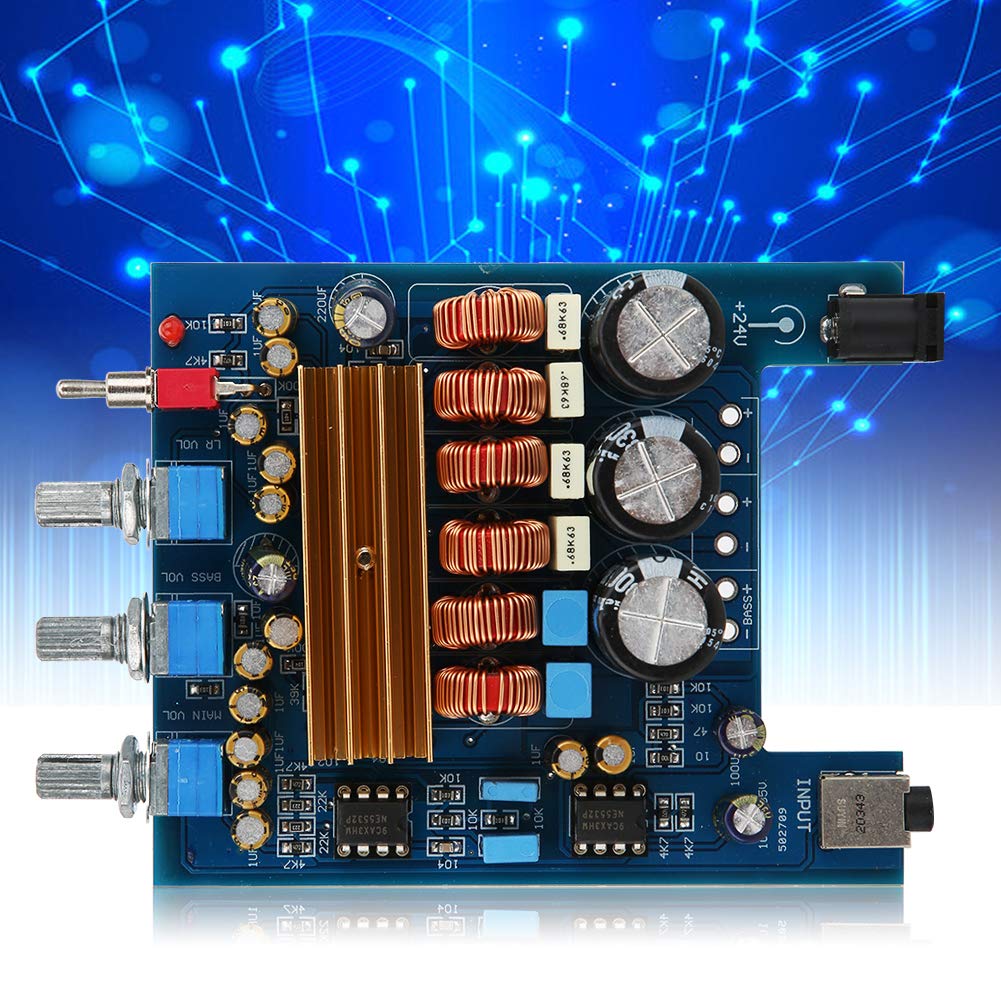

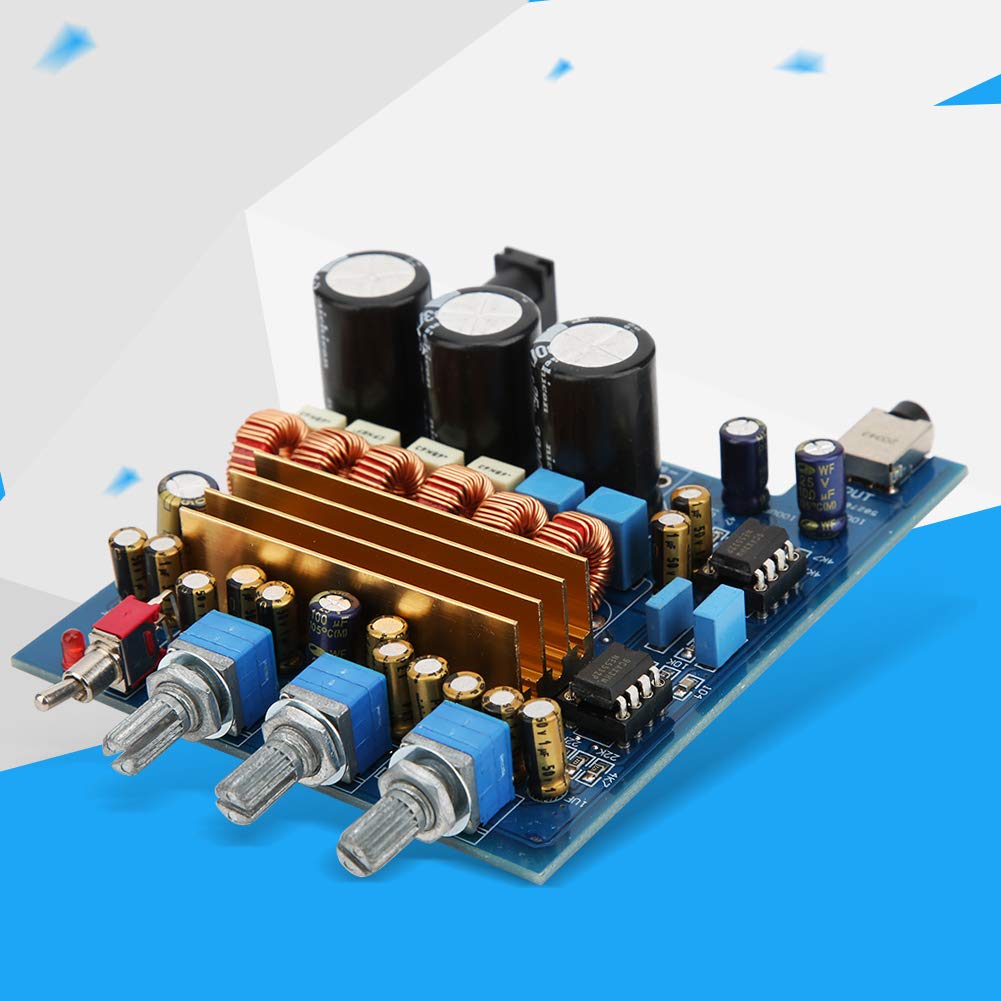

Digital Amplifier Module 100W

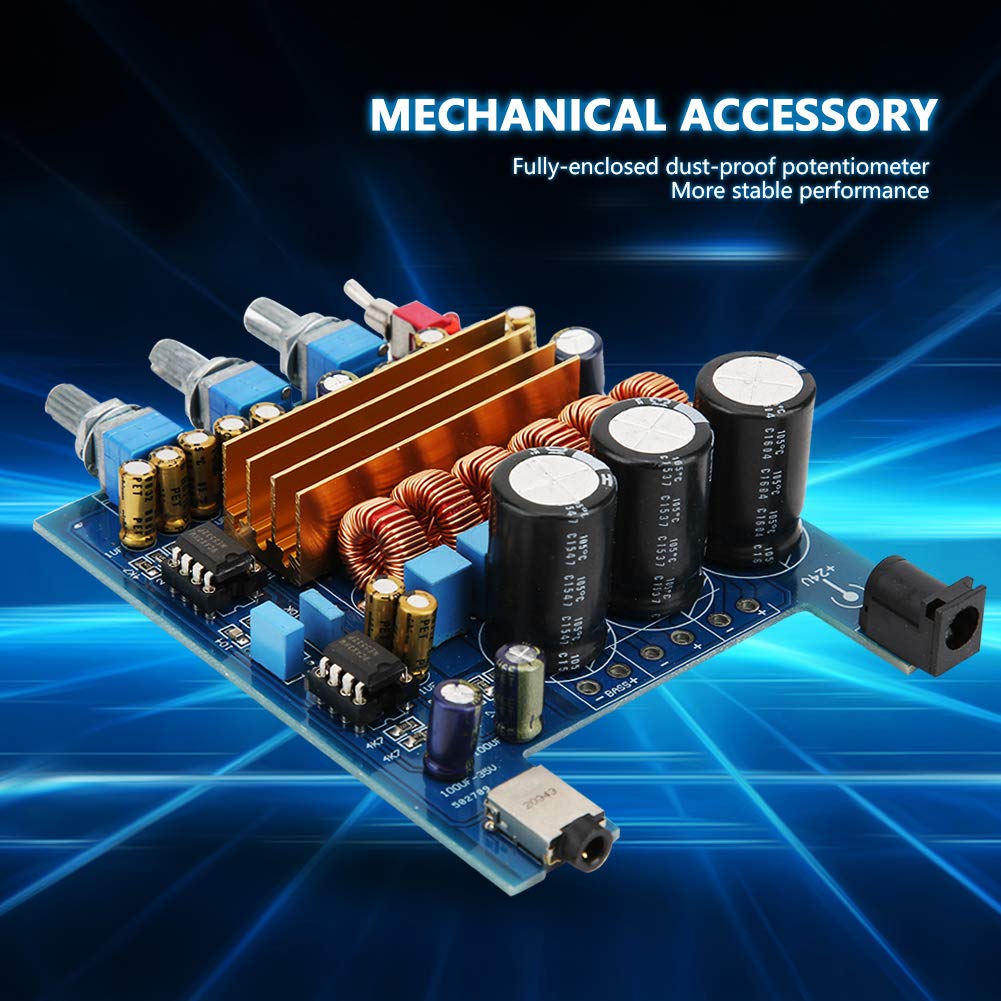

Using fully-enclosed dust-proof potentiometers, the performance is more stable and more than ordinary potentiometers.

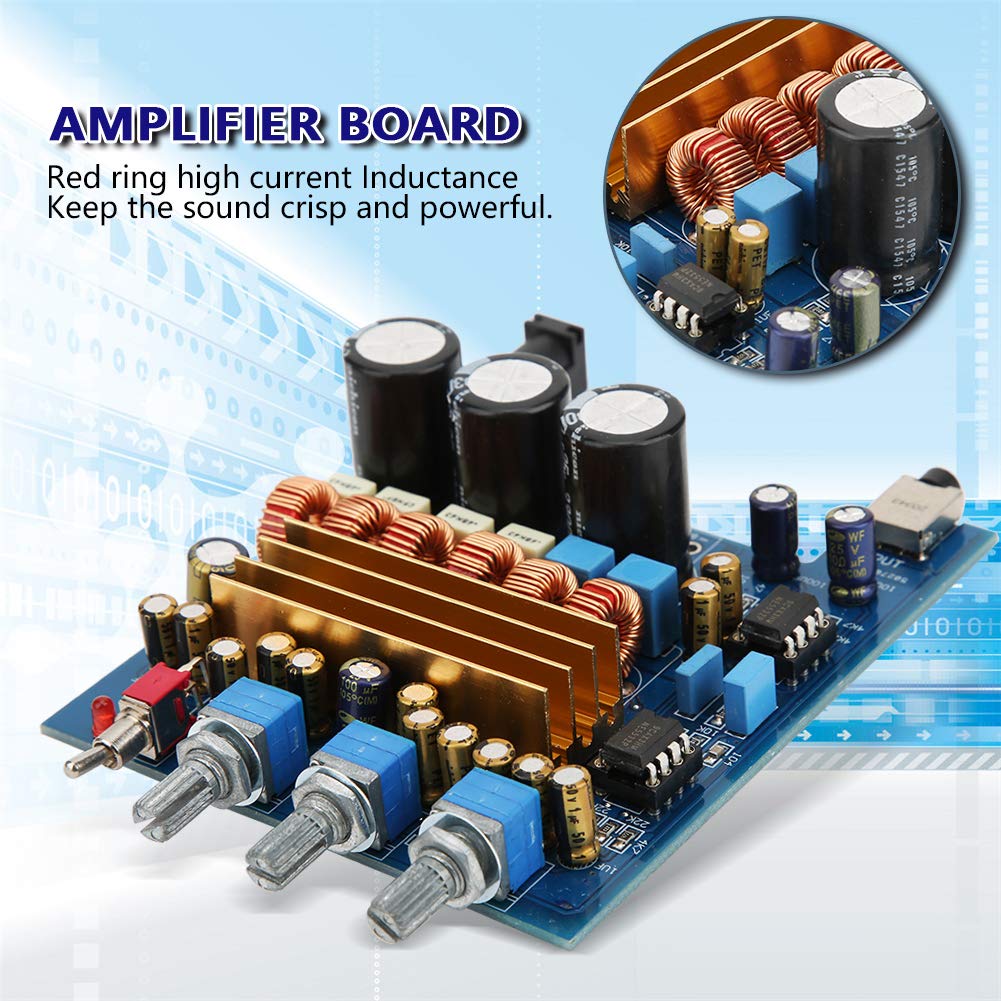

Amplifier board adopts red loop high current inductance to keep the crisp and powerful sound.

The resistor uses high- chip resistors, and the main loop uses a five-ring metal film resistor with an accuracy of ± 1%, which keeps a good -to-noise ratio for the whole machine.

Via craft by many experts, such an amplifier module is entitled with high performance according to strict rule.

Supports simple installation, digital amplifier module installation does not require particularly complicated operations.

Specification:

• Item Type: Digital amplifier module

• Working Method: Class D

• Quiescent Current: 50mA

• Work Efficiency: 90%

• Rated Output Power: 2 x 50W + 100W

• Frequency Response: 20Hz to 20KHz

• Working Voltage: DC18V to DC24V

• Maximum Output Current: 4A

• PCB Size: Approx. 100 x 83mm / 3.94 x 3.27in

• Potentiometer Function: Switch from left to right

• 1. Left and right channel volume 2. Bass volume 3. Master volume

• Weight: Approx. 122 g / 4.3 oz

Package List:

1 x Digital Amplifier Module
