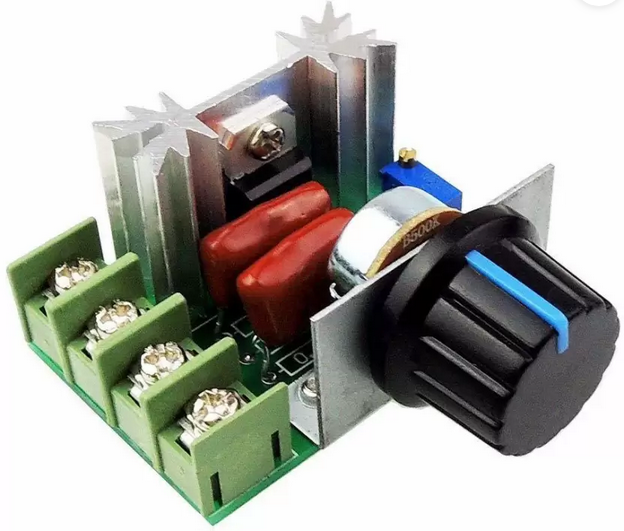

Voltage Regulator
Spannungsregler
CHF5.00
Voltage Regulator Dimming Dimmers Motor Speed Controller Thermostat Electronic Voltage Regulator Module
Connect this device with lamp or home appliance in a series connection, then rotate the knob for dimming, speed, voltage, temperature control.
This controller uses high-quality SCR. And the max current is up to 25a. For the safety, we suggest the continuous load current is within 5a. This ac voltage regulator can be used to control ac motor speed, ac light and heating wire temperature. Inductive or capacitive load power should be reduced. For example, recommended for motors within 1000w
Operating instruction:
Before you attempting to wire the controller, make sure all power is disconnected.
Cut any one of the battle line or zero line of the lamp or electrical appliances, and connect wires refer to the "wiring diagram" (no.5 picture)
Turn on the power, and adjust the potentiometer.
If the adjustment range is found to be small, please adjust the blue potentiometer on the product counter clockwise to set the maximum adjustment range to 50v to input voltage.
Input voltage: 110V/220V
Maximum power: 2000W
Adjustable voltage: AC 50-220V
Size: 48 x 60*28 mm
Package including : 1 x ac motor speed controller
